Computing fourth-order shear statistics on a mock shape catalog

In this notebook we compute the fourth-order shear correlation functions on a realistic shape catalog and compare it with the gaussian prediction. We then compute the fourth-order aperture mass statistics using the same setup as the one used in Fig 3 or Porth+ (2025).

from astropy.table import Table
import numpy as np
from matplotlib import pyplot as plt

import orpheus

Obtaining a realistic mock shape catalog

We will run this notebook using a mocks shape catalog from the SLICS ensemble. First, let us download this catalog and read in its contents.

Note: If you want to run the notebook yourself, you need to update the savepath_SLICS variable.

catname = "GalCatalog_LOS11.fits"
path_to_SLICS = "http://cuillin.roe.ac.uk/~jharno/SLICS/MockProducts/KiDS450/" + catname
savepath_SLICS = "/vol/euclidraid4/data/lporth/HigherOrderLensing/Mocks/SLICS_KiDS450/"

#!wget {path_to_SLICS} -P {savepath_SLICS}

slicscat = Table.read(savepath_SLICS + catname)
print(slicscat.keys())

['x_arcmin', 'y_arcmin', 'z_spectroscopic', 'z_photometric', 'shear1', 'shear2', 'eps_obs1', 'eps_obs2']

WARNING: UnitsWarning: 'UNKNOWN' did not parse as fits unit: At col 0, Unit 'UNKNOWN' not supported by the FITS standard.  If this is meant to be a custom unit, define it with 'u.def_unit'. To have it recognized inside a file reader or other code, enable it with 'u.add_enabled_units'. For details, see https://docs.astropy.org/en/latest/units/combining_and_defining.html [astropy.units.core]
WARNING: UnitsWarning: 'UNKNOWN' did not parse as fits unit: At col 0, Unit 'UNKNOWN' not supported by the FITS standard.  If this is meant to be a custom unit, define it with 'u.def_unit'. To have it recognized inside a file reader or other code, enable it with 'u.add_enabled_units'. For details, see https://docs.astropy.org/en/latest/units/combining_and_defining.html [astropy.units.core]

fdownsample = 28 # Downsample mock to roughy match nbar of Porth+25 tests on SLICS

shapecat = orpheus.SpinTracerCatalog(spin=2,
                                     pos1=slicscat["x_arcmin"][::fdownsample],
                                     pos2=slicscat["y_arcmin"][::fdownsample],
                                     tracer_1=slicscat["shear1"][::fdownsample],
                                     tracer_2=slicscat["shear2"][::fdownsample])

print("Number of galaxies:%i --> effective nbar: %.3f/arcmin^2 on %.2f deg^2"%(
    shapecat.ngal, shapecat.ngal/(shapecat.len1*shapecat.len2), shapecat.len1*shapecat.len2/3600.))

Number of galaxies:109672 --> effective nbar: 0.305/arcmin^2 on 100.00 deg^2

Computation of full 4PCF (few bins)

Let us first showcase that in the case of a coarsely binned 4PCF the actual computation is not too expensive. As in this case also the memory footprint of the 4PCF is small, we can use the runtime-optimised implementation (i.e. we set lowmem=False) and we further accelerate the estimator using the Tree-approximation.

min_sep = 1.
max_sep = 128.
nbinsr = 14
nthreads = 48
method="Tree"
lowmem = False
tree_resos = [0.,1.,2.,4.]
rmin_pixsize = 20
nmax=15

fourpcf = orpheus.GGGGCorrelation_NoTomo(min_sep=min_sep, max_sep=max_sep,nbinsr=nbinsr,nmaxs=nmax,
                                         method=method, nthreads=nthreads,verbosity=2)

%%time
fourpcf.process(shapecat, lowmem=lowmem, statistics=['4pcf_multipole'])

.........|.........|.........|.........|.........|.........|.........|.........|.........|.........|CPU times: user 1h 46min, sys: 1min 11s, total: 1h 47min 12s
Wall time: 2min 15s

()

Let us now plot the result and compare it with the gaussian prediction (i.e. the disconnected part of the 4PCF). To estimate the latter we compute the second-order shear correlation functions and rebin then to a fine linear binning.

%%time
# Compute shear 2pcf from data
fac_minsep = 0.05
fac_maxsep = 2.
min_sep_disc = fac_minsep*fourpcf.min_sep
max_sep_disc = fac_maxsep*fourpcf.max_sep
binsize_disc = 0.1
ggcorr = orpheus.GGCorrelation(min_sep=min_sep_disc, max_sep=max_sep_disc,binsize=binsize_disc,
                               rmin_pixsize=fourpcf.rmin_pixsize, tree_resos=fourpcf.tree_resos, nthreads=fourpcf.nthreads)
ggcorr.process(shapecat)

# Map to a very fine linspace
from scipy.interpolate import interp1d
linarr = np.linspace(min_sep_disc,max_sep_disc,int(max_sep_disc/(binsize_disc*min_sep_disc)))
xip_spl = interp1d(x=ggcorr.bin_centers_mean,y=ggcorr.xip[0].real,fill_value=0,bounds_error=False)
xip_lin = xip_spl(linarr)
xim_spl = interp1d(x=ggcorr.bin_centers_mean,y=ggcorr.xim[0].real,fill_value=0,bounds_error=False)
xim_lin = xim_spl(linarr)

CPU times: user 1min 28s, sys: 89.6 ms, total: 1min 28s
Wall time: 2.28 s

With the 2PCF in hand we can use the orpheus-internal gauss4pcf_analytic method to convert the measured 2PCFs to the disconnected 4PCFs. To get the full 4PCF we transform the 4PCF multiples to the real-space basis. As we only want to consider a single radial bin combination we use the multipoles2npcf_singlethetcombi method for that matter.

%%time
# Selection of bins for this example
icomp = 0 # Natural component (0-7)
itheta1 = 6 # Index of first radial bin
itheta2 = 10 # Index of second radial bin
itheta3  = 9 # Index of third radial bin

# Get disconnected 4PCF from measured 2PCF
fourpcf_disc = fourpcf.gauss4pcf_analytic(itheta1, itheta2, itheta3, nsubr=4,
                                          xip_arr=xip_lin, xim_arr=xim_lin,
                                          thetamin_xi=linarr[0], thetamax_xi=linarr[-1], dtheta_xi=linarr[1]-linarr[0])

# Get full 4PCF by transforming the 4PCF multipoles to the real space basis
fourpcf_slice, fourpcrnorm_slice = fourpcf.multipoles2npcf_singlethetcombi(elthet1=itheta1,elthet2=itheta2,elthet3=itheta3)

CPU times: user 195 ms, sys: 998 µs, total: 196 ms
Wall time: 194 ms

Finally, let us plot the results. As in the Porth+ (2025) paper (cf Fig 2) we can see how the overall shape between the disconnected and the full 4PCF is fairly similar, and we also see that there is a significant disconnected contribution.

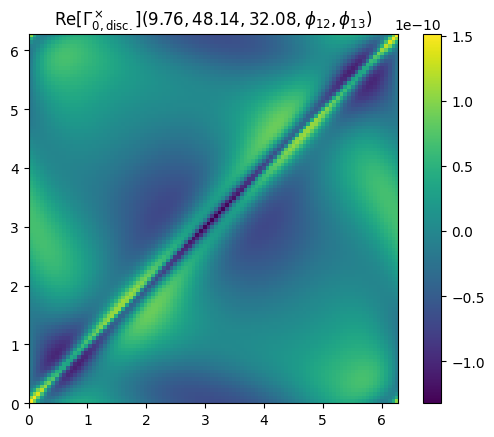

# Plot estimate of disconnected 4PCF
plt.imshow(fourpcf_disc[icomp].real,origin='lower',extent=[0,2*np.pi,0,2*np.pi])
plt.colorbar()
plt.title(r"Re$[\Gamma_{%i,\mathrm{disc.}}^\times](%.2f,%.2f,%.2f,\phi_{12},\phi_{13})$"%(icomp,
    fourpcf.bin_centers[0,itheta1],fourpcf.bin_centers[0,itheta2],fourpcf.bin_centers[0,itheta3]))
plt.show()

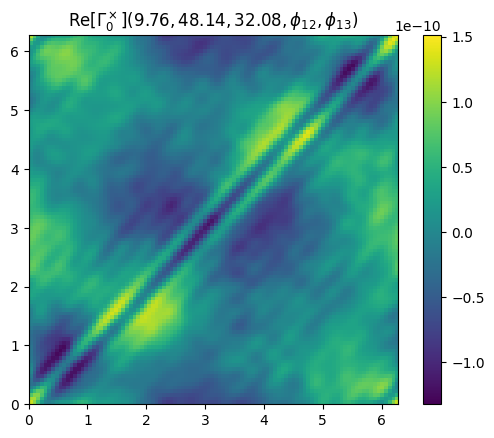

# Plot full 4pcf --> Use same normalisation as for disconnected piece to emphasize the amplitude difference
plt.imshow(fourpcf_slice[icomp].real,vmin=np.min(fourpcf_disc[icomp].real),vmax=np.max(fourpcf_disc[icomp].real),
           origin='lower',extent=[0,2*np.pi,0,2*np.pi])
plt.colorbar()
plt.title(r"Re$[\Gamma_{%i}^\times](%.2f,%.2f,%.2f,\phi_{12},\phi_{13})$"%(icomp,
    fourpcf.bin_centers[0,itheta1],fourpcf.bin_centers[0,itheta2],fourpcf.bin_centers[0,itheta3]))
plt.show()

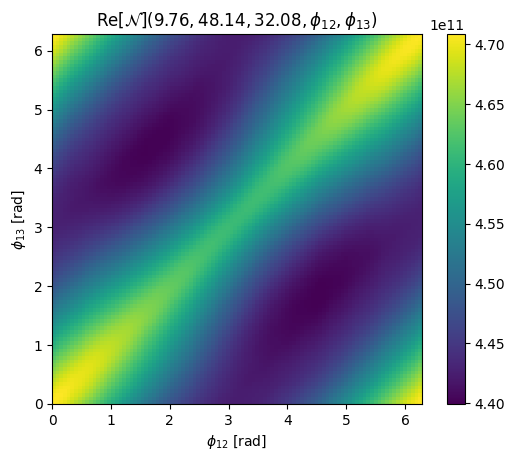

# Plot overall normalization --> Shape makes sense given poisson sampling + square footprint of extent 10degx10deg.
plt.imshow(fourpcrnorm_slice.real,origin='lower',extent=[0,2*np.pi,0,2*np.pi])
plt.title(r"Re$[\mathcal{N}](%.2f,%.2f,%.2f,\phi_{12},\phi_{13})$"%(
    fourpcf.bin_centers[0,itheta1],fourpcf.bin_centers[0,itheta2],fourpcf.bin_centers[0,itheta3]))
plt.colorbar()
plt.xlabel(r"$\phi_{12}$ [rad]")
plt.ylabel(r"$\phi_{13}$ [rad]")
plt.show()

Computation of full 4PCF (many bins)

Warning: This example requires significant CPU (~200h) resources!

We now proceed to compute the 4PCF in many radial bins s.t. we expect to get an unbiased estimate of the fourth-order aperture mass statistics. As in this case the length of the internal arrays exceeds the C-imposed limit for the runtime-optimised implemenation, we have to resort to the memory-optimised implementation which only uses about 10GB in total (as opposed to an estimated hypothetical 500GB for the runtime-optimised implementation).

We note that while the setup below reproduces the one inPorth+ (2025)the underlying ellipticity data does not include any noise.

min_sep = 0.25
max_sep = 166.2854082610904
nbinsr = 65
nbinsphi = 128
nthreads = 48
method="Tree"
lowmem = True
tree_resos = [0.,1.]
rmin_pixsize = 40
nmax = 15
mapradii = np.geomspace(1,32,21)

fourpcf_fine = orpheus.GGGGCorrelation_NoTomo(min_sep=min_sep, max_sep=max_sep,nbinsr=nbinsr,nmaxs=nmax,nbinsphi=nbinsphi,
                                              method=method, nthreads=nthreads,verbosity=2)

Processing the catalog we see that there are printed fairly detailed updates that show how much time is spent in the allocation of the Gn and ind the updates of the Upsilonn. As a rough estimate the fraction of redundant computations done within the memory-optimized implementatoin is given as Time_per_Gn/Time_per_Upsnbatch. In the current setup this is about 25 per cent. For more details on the memory-optimised implementation see appendix A2 in Porth+ (2025).

%%time
M4correlators = fourpcf_fine.process(shapecat, lowmem=lowmem, mapradii=mapradii, statistics=['M4'])

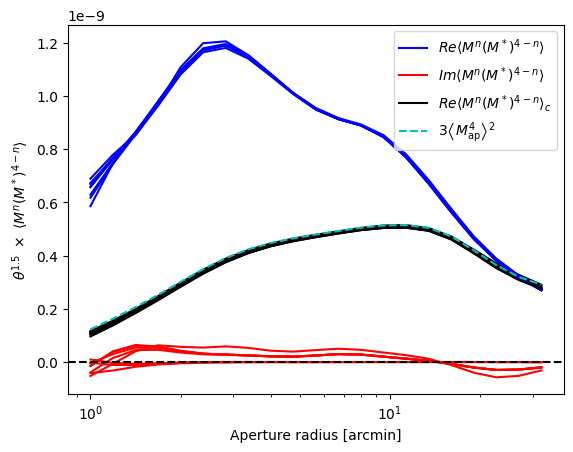

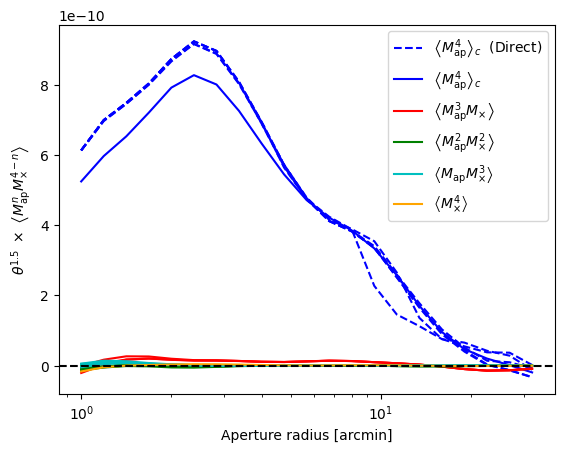

mmstar = M4correlators[0][:,0]
mapmx = orpheus.GGGGCorrelation_NoTomo.MMStar2MapMx_fourth(mmstar)

Using batchsize of 998 for radial bins
Doing region 0/63496 for thetabatch 0/48
